T8 Tube LED Emergency Conversion Kit 3 Hours come in a box For LED
Tube 10-45W
Features & Applications
l Replacement for traditional T8 / T10 fluorescent tubes;
l Used as additional emergency light in a blackout situation;
l Suitable for indoor use, such as homes, shops, offices, hotels,
factories etc.
Feature:
1. Direct replacement for traditional fluorescent lamp. No need to
replace current ballast or rewire.
Reduce installation labor cost
2. Also work directly from 100-277 VAC
3. Health: flicker free and low glare
4. Two end caps: fixed or rotatable for you
5. Two covers: clear (beam angle:120°) or frosted ( beam
angle:130°)
6. Warranty: 5 years, Rated Life: 50000hrs
7. Working temperature: -20~40℃.
Product Specifications:
Construction & materials:
Product name | Emergency Conversion Kit |
Input voltage | 85-265/90~240V/100-277V AC, 50/60HZ |
Indicator | Yes |
Test button | Yes |
Emergency Duration | 1-3hrs |
Battery protection | Yes |
Operation temperature | -10°C~50°C |
Highest Surface Temperature | 70°C |
Battery | 10 * 4Ah Ni-CD Batteries |
Brightness | 100% |
Charging | 24h after commissioning |
Maximum power LED | Below 60w |
Output in emergency | 12-48V |
Emergency / main-power emergency | Yes |
Inverter Dimensions | 168*38*28mm(Enternal Driver) |
Battery Dimensions | 240*38*20mm |
Housed Box | Metal Box/Aluminum Box |
| Case | 12V 3600mAh for 18W led tube, emergency work at 1.5 hous. |
Actual Dimension | Dia 26*Lenght 1178mm |
Housing | Extrusion aluminum and Diffused PC optical lens. |
Finish color | silver |
Lens type | Frosted or clear |
Retrofit | Yes |
Environmental system
Work environment | Indoor use ( application for dry environment) |
Operating temperature | -20～50℃ |
Mercury (mg) | 0 |
Optical system
Luminous flux | 1800lm @ 4000K, 2000lm @ 6300K |
Color temperature | 4000K & 6000K is best seller. |
CRI | 83 for 4000K, 80 for 6000K |
Lumen maintence at 6000h | 95% |
Lumen Maintenance Factor at Lifetime | 0.75 |
Rated peak candelas(cd) | 4000K @ 500lm; 6300K @ 600lm |
Electrical system
Input voltage/Current | 100-264/277Vac;220-240Vac,50/60Hz |
Off state power | 0 |
Power consumption | 18W |
Power Factor | 0.95 |
THD | ＜20% |
Protection | Class II driver, Class III panel
IP20 real/IP40 front |
Dimmable | No |
Switching Cycles | 50000 |
Start Time (s) | 0.25 |
Warm-up time to 60% (s) | Instant full light |

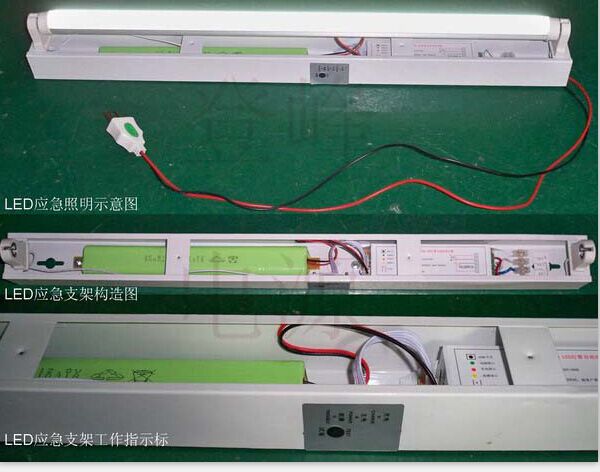

Invertor and battery be hided in the exsitingn fixture like below
picture:
Diagram like below show :

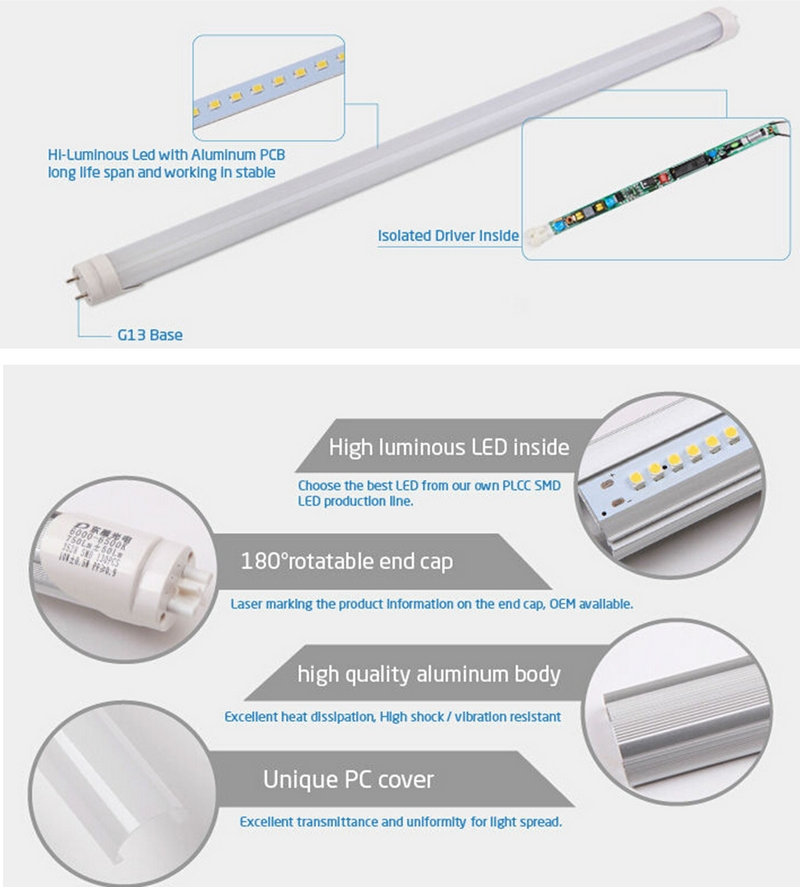

Feature:

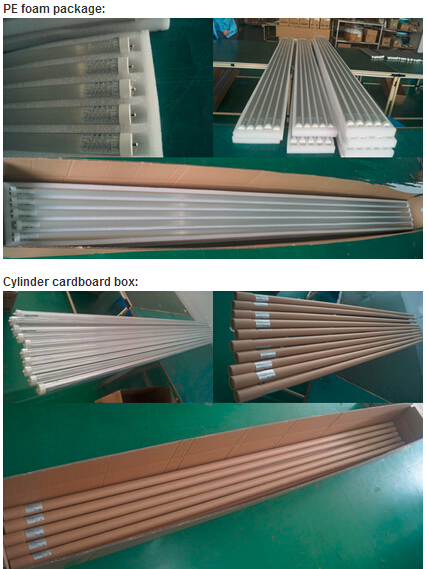

Package:

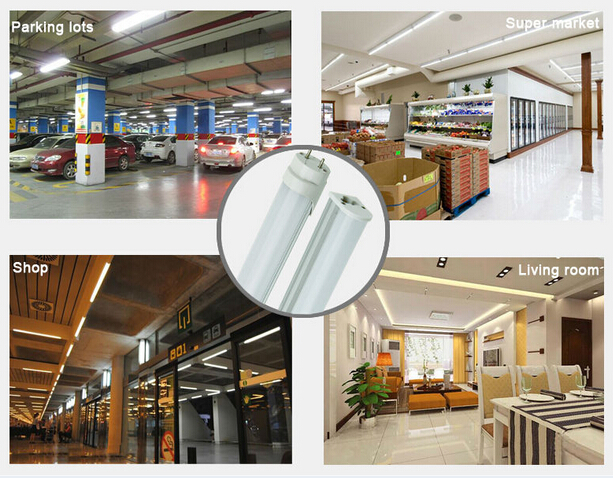

Applications:
1.classrooms | schoolrooms
2.office | meeting room | conference room | boardroom
3.underground garage | garage
4.supermarket | shop
Case:
FQA:
Q1: What is the Warranty for the tubes?
A1: For the tubes,we have 5 years warranty.If any quality problems
on our side occured in this period ,we will take on the shipping
cost and replacement.
Q2: What is colour temperature?
A2: Ervan's LED Lighting offer lamps in warm, natural,pure and cool
white with colour temperatures measured in Kelvin (K). The lower
the colour temperature is, the warmer the light given by the LED:
Warm white = 2850-3050k
Natural white = 3800-4200k
Pure white = 4700-5250k
Cool white = 6200-6800k
Q3: What is CRI?
A3: CRI is a figure which feedback the real objects colors.Higher
CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and
80Ra with higher cost.
Q4: Why does my LED tube not work properly in extreme temperatures?
A4: Any temperature below 14 F or above 122 F may cause a LED bulb
to flicker, dim, change color, or cease to function. Once the LED
bulb is returned to an operational environment it should began to
work properly.
Q5:Is there cheap shipping cost to import to our country?
A5: For small order,express will be best.And for bulk order,sea
ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship
partner send to your door.
Q6:Can we get support if we have our own market position?
A6: Please inform us your detailed mind on your market demand,we
will discuss and propose helpful suggestion for you,to find the
best solution for you.
