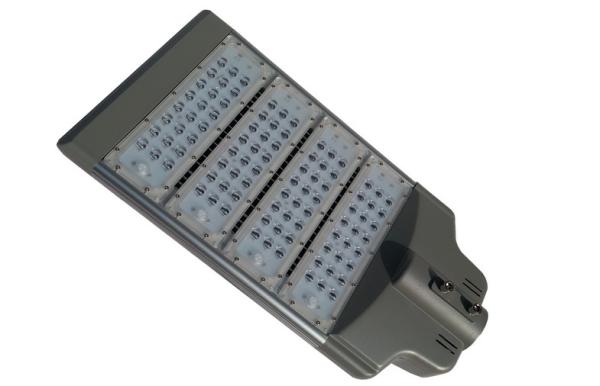

Free sample for 200W CE Rohs Approved led street light with CREE
LED & 3 Years Warranty, 6036 aluminum heat sink
Product Features:
CREE LED, high luminous efficiency and long life.
High efficiency LED Driver, the wide range of input voltage
AC100-277V;
Self-cleaning, down-
Self-cleaning,down-roof patented design, better heat dissipation, LED Tj < 85℃
Excellent optical design, greatly improve the light utilization and
evenness.
Product Applications:
Widely used in Main street roads, Urban roads, Parking lot,
Sidewalks, Squares, parks, high pole light etc.
Structure Features:
Shell materials: 6063 Aluminum.
Self-cleaning profile
Grey / Silver White color housing
Net weight:8.0 Kg
Dimension: 521*281*170mm
Specification |
Power: | 200w |
Material: | 6063 aluminum alloy housing + PC lens |
Type Of Chip: | power LED |
Brand Of Chip: | CREE |
Luminous: | 19000-20000 LM |
Color Temperature: | 2700 ~ 6500K |
CRI: | Ra ≥ 75 |
Beam Angle: | x140° ~ y70°, x155° ~ y55°,x145° ~ y75°, 90°,120° |
Total Harmonic Distortion(THD): | <20% |
PF: | >0.95 |
Working Life: | ≥ 50000 hrs |
Warranty: | 3years |
Dimensions |
Finishing Color: | Black;Gray |
Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
SHAPE: | Rectangle |
Weight: | 8 Kg |
Size: | 521*281*122mm |
Diameter of socket: | 50-60mm |
Package Size: | box size: 600*350*120mm
2pc/carton; CBM:0.05m³ |
Work Environment |
Input Voltage: | AC90-295V/305v,50-60Hz |
Operating Temperature: | -40~ + 70°C |
Application |
Application: | Used for Main street roads, Urban roads, Parking lot, Sidewalks, Squares, parks, schools, gardens etc. |
Recommend mounting height: | 12m-15m |
Recommend pole Distance: | 35m-40m |
Installation Notes
1. Before installation, the unit should be checked for damage that
might have occurred in transit. If any damage is found, do not
install the product.
2. To avoid potential hazard, the replacement of external cables
and wires should be processed by the factory, local representatives
or the other qualified technician.
3. The input voltage should not exceed the operating voltage of the
lamb, that ranging from 100V to 240V.
4. The installation and wiring connection should be carried out
after turning the power off.
5. Please ensure the length of power cords satisfy the
installation. Tensile force and shear stress should be prevented
for cables and plugs. Do not kink cables. Output cables should be
laid separately at a distance from the others.
After sale service
We product provide 3 years warranty, all freight for replacing
parts/lamp at our side
1. If driver failed, we’ll send new driver
2. If LED failed, we’ll sent new LED moduale
3. Unclear reason, we will sent full new set
Why choose Bellaid?
1. 8 years focused on LED.
2. One-stop lighting solutions (lighting designing, lighting
choosing, solar and wind power solution etc.)
3. OEM & ODM are optional.
4. Independent innovation, design, open mold, striking Bellaid
characteristic.
5. R&D team: 10 engineers with 9 years LED street light design
work experience.
