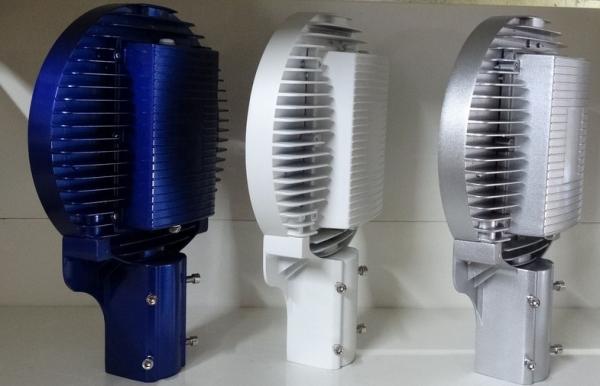

40W,60W die casting aluminum Led street light with
Samsung/Bridgelux/Epistar chip led ,3Years Warranty.
Features:
1. 50000 hours life span, 10 times long as flourescent lamp
2. Luminours efficiency up to 100%
3. Good heat sink
4. Toughened glass to resist explosion
5. Dust & water proof
6. Working temperature:-30--+55
7.LED Junction Temperature: <80 degree
8. Power Efficiency: >90%
Characteristic:
lamp body adopt superior AL alloy die-casting form
diffuser adopt matting tempering glass
high purify AL alloy reflector
complete stainless steel fixed screw, safty and good looking.
matched pole Ø60mm with hight 2.5-4.5m
Application:
business street, playground, park, community, street green land,
leisure place ect, outdoor lighting
Product name | LED street light, high bay light |
Part No | BLD-SL-YH-PIZ-60W |
Light Type | Street |
Dimension | 395*275*90MM |
| Weight | 4.5 KG |
Technical Characteristic
Color temperature | 2700-6500K |
CRI | >80 |
Lumen | 4000-4500LM for 40W,6000-6500LM for 60W |
Input Power | 40W,60W |
Viewing Angle | 120 deg |
Input Voltage | AC90-264/277/305V 50/60Hz |
Driver model | Meanwell CLG/HLG series with top quality |
PFC | >0.95 |
Equivalent | 200W incandescent |
Waterproof Rating | IP65 |
Materials
LED Brand | CREE , ,Samsung,Epistar, as prefer |
LED Type | Samsung led chip as standard. |
LED QTY | 50 pcs |
Housing | Die casting aluminum + tempered glass cover |
Housing color | White or black ( any customized color in the available0 |
Operating Temperature | -20℃ To 45℃ |
Operating Humidity | 20%-90% RH |
Storage Temperature | -30℃ TO 80℃ |
Storage Humidity | 10%-95% |
Application | Indoor /outdoor |
Warranty Time | 3 Years |
Delivery detail:
1.1pcs/box//carton.
2.We ship samples by UPS/DHL/FEDEX/TNT/EMS express, sample making
time 1-3days.
3.it takes 3~ 5 days to arrive, or by air cargo which takes about
one week .
4.Order proucing time is 7-15days.Large quantity will be shipped by
sea which takes Longer time to arrive,depending on your actual
requirements.
5. And we can deliver the goods to your company from China with
very cheap freight.
by sea,door to door .Freight covering all cost from our factory to
your warehouse. You don't need do nothing ,just waiting for the
goods. Save your money and time.
