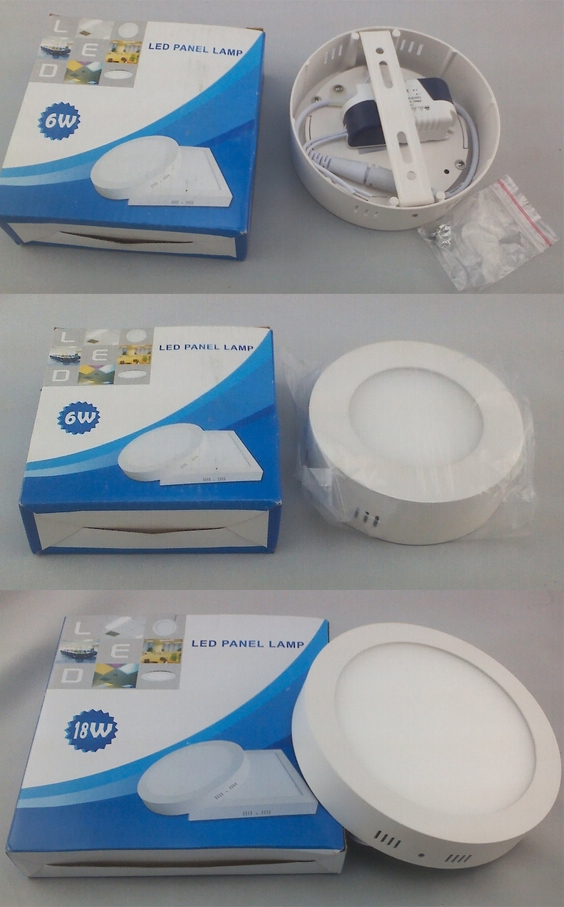

Round ceiling mount 6w 12W 18w led panel light for for home , hotel
, office,hospital
Product Characteristics:
1, Use imported precision die-cast aluminum, treated with white
paint, which has pressure resistance, wear resistance, corrosion
resistance, and good color sustainability.
2, Use imported spread LGP, soft and comfortable lighting, which
can avoid glare and protect eyesight.
3, Inserted with smart IC chip, which can be used to control
circuit and provide open circuit, short circuit, high-voltage and
low-voltage protection; it has steady quality to ensure LED
lifetime.
Feature:
1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA/PC as lens, high pure reflector makes
sure more light coming out
3. Fashionable &novel looking design, ultrathin aluminum body
for easy operating.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6. Energy-saving and high efficient LED driver.
Specification sheet:
| Item NO | BLD-PL-MR12-6W | BLD-PL-MR17-12W | BLD-PL-MR22-18W |
| Power | 6W | 12W | 18W |
| LED qty | 30pcs | 60pcs | 90pcs |
| Lumen | 550LM+/- 10% | 1050LM+/-10% | 1600LM+/-10% |
| size | 120*120*50mm | 170*170*50mm | 220*220*50mm |
| Input | 100-240/277V/50-60HZ |
| color temp | 2800-3200K/4000-4500K/6000-6500K |
| Height | 50mm |
| Dimmable | Yes or None |
| Dimmable method | 0-10V/Triac/PMW as your prefer |
| CRI | >80 |
| PF | >0.9 |
| Effieacy | 90-96lm/w |
| Beam angle | >120 |
| IP grade | IP20 |
| Life span | 30000 hour |
| Installation | Ceiling mount |
| LED type | Epistar etc |
| Material | Die-Casting aluminum ,PC+PMMA |
| Warranty years | 3 years |
| MOQ | 10PCS |
Gift color box with OEM info for you.
Color temperature for youre refer.
Name: | PCS/CTN | G.W/CTN | SIZE/CTN |
| 6W | 30PCS | 11KG | 45.5*30.5*25.5CM |
| 12W | 20PCS | 12KG | 42.5*42.5*25.5 CM |
| 18W | 20PCS | 17KG | 50.5*50.5*25.5CM |
Application:
Office ,Hotel ,Residential ,Restaurant ,Fashion shop and so on.
