60 x 60cm(2 x2 ft) 40W 0-10v/1-10v dimmable led panel light for
home , hotel , office,hospital, high grade application.
Description:
Bellaid flat LED panel is a well-designed & easy to retrofit
replacement for standard ceiling tile fittings( ceiling troffer
fixture )widely used in offices,hospitals and other professional
locales.
Our company LED panel has an outstanding luminous efficacy of
95lm/w achieved by utilizing ultra-bright SMD leds in tandem with
Japanese-design reflective materials.
Thanks to its good sink design , Bellaid LED panel has unbelievable
low in situation temperature 33℃,Calculated LM70 lifetime is
66,000h.
Wiring Diagram for ref :
High quality 0-10V driver:
Product Specifications:
Construction & materials:

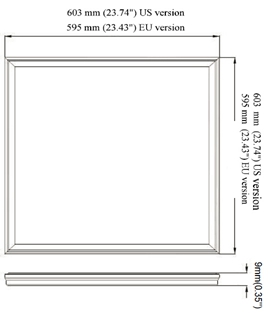

Actual Dimension | 595*595mm(23.43*23.43inch) |
Housing | Extrusion aluminum and Diffused PMMA optical lens. |
Finish color | White and silver |
Lens type | Frosted |
Retrofit | Yes |
Environmental system
Work environment | Indoor use ( application for dry environment) |
Operating temperature | -20～50℃ |
Mercury (mg) | 0 |
Optical system
Luminous flux | 3800lm @ 4000K, 4000lm @ 6000K |
Color temperature | 4000K & 6000K is best seller. |
CRI | 82 for 4000K, 83 for 6000K |
Spacing criteria | C0/180:1.26;C90/270:1.23 |
Lumen maintence at 6000h | 95% |
Lumen Maintenance Factor at Lifetime | 0.75 |
Rated peak candelas(cd) | 4000K @ 1300; 6000K @ 1450 |
Emergency Luminous Flux (lm) | 1200LM @ 1/3 wattage |
Electrical system
Input voltage/Current | 100-240/305Vac;50/60Hz |
Off state power | 0 |
Power consumption | 40W |
Power Factor | 0.98 |
THD | ＜15% |
Protection | Class II driver, Class III panel
IP20 real/IP40 front |
Dimmable | No |
Switching Cycles | 50000 |
Start Time (s) | 0.35 |
Warm-up time to 60% (s) | Instant full light |
Features
1. Energy Saving. Saving 55%-70% electricity cost to traditional
Panels.
2. Advanced super longlife and stable driver.
3. Professional thermal management.
4. Instant on, no warm up time required.
5. No noise, no flickering.
6. No UV or IR radiation in the beam, mercury free.
7. Anti-shock, anti-moisture.
8. Aluminum alloy 6063 body and leading light transmitting Optical
PMMA cover.
9. Exquisite small appearance. Easy to install with mounting
brackets.
10. Eco-friendly. No mercury and harmful materials

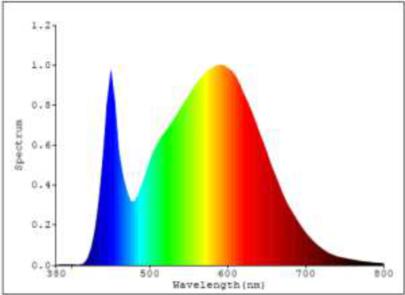

Photometric Information
4000K 6000K

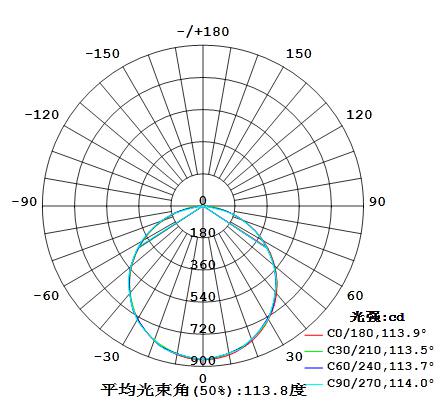

Distribution curve flux:
Illuminance demo:
User Guide Note:
Pls read the entire manual to fully understand and safe usely use
this product.
The products anc be used at voltage of 100-277Vac,50/60Hz,suitable
for indoor dry environment.
Specifications are subject to change without notice.pls visit
www.LED-Panel-lights.com for the most recent user guide versions.
Unpacking
- Unpack and careful examine the product.
- Report any damage and save all packing material if any parts were
damaged during transportation
- Do not attempt to use this apparatus if it is damaged.
Installation instructions
1) Pls remove the protection film on the front of luminaire
- Consult a qualified electrician to ensure correct branch circuit
conductor.
- The products should be installed and operated by qualified
electrician or technician in accordance with relevant local codes.
- Rish of electric shock,ensure that main power source is off when
wiring or soldering the sections of the product.
Maintenance
- Prior to cleaning the product,make sure it has been disconnected
from power supply.
- Use a dry or slightly moistened cloth for cleaning
- Never use any chemical or abrasive materials for cleaning.
Installation considerations
- The product must be at a minimum distance of 20cm from any
flammable material.
- The product must not be installed into ceilings or wall that
contain heat-insulating materials.

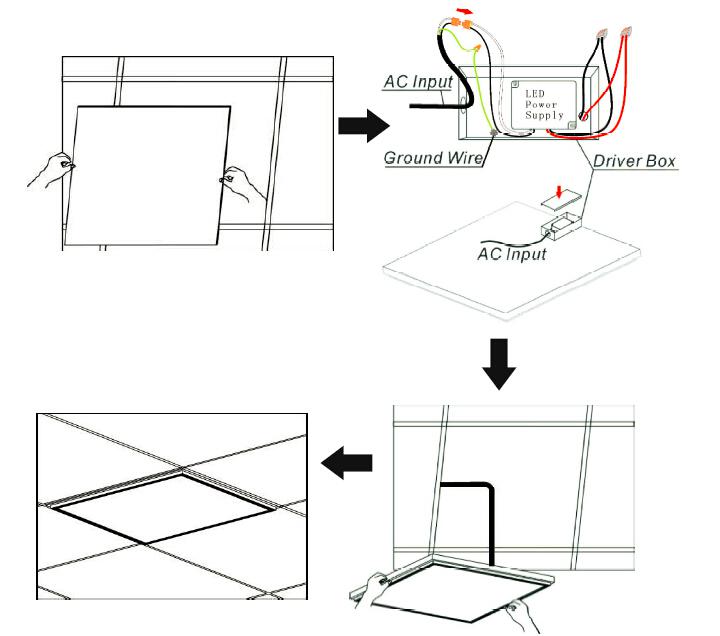

Installation steps
- Turn off main power before wring.
- Remove the ceiling panel
- Connect the input and ground wires(bare end) of the driver box to
the main power outlet.
- Connect male-female connector tightly on the panel and driver.
- Fix the flat led panel into the ceiling.
