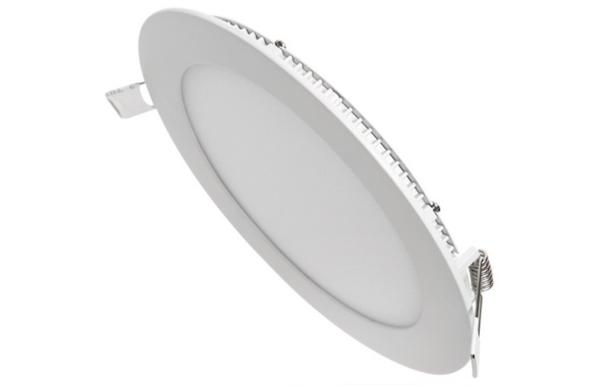

3w 6w 9w 12w 15w 18w round led panel light for for home , hotel ,
office,hospital
With 0-10V dimmable for your option.

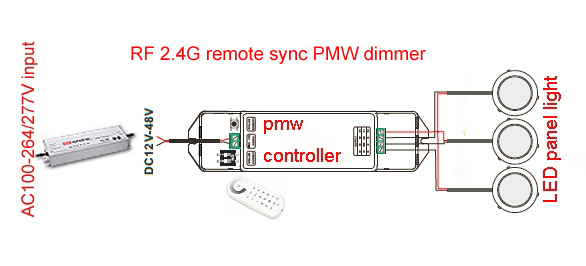

Wiring diagram for your ref:
One PMW controller power one or more lamps at one room or more
room.
PMW sync dim, one driver can power several lamps
and sync dimmable for all lamps.
2.4GHZ RF wireless synchronization dimming
2.4GHZ RF wireless zone dimming respectively.
every zone with one PWM controller with one or more lamps.

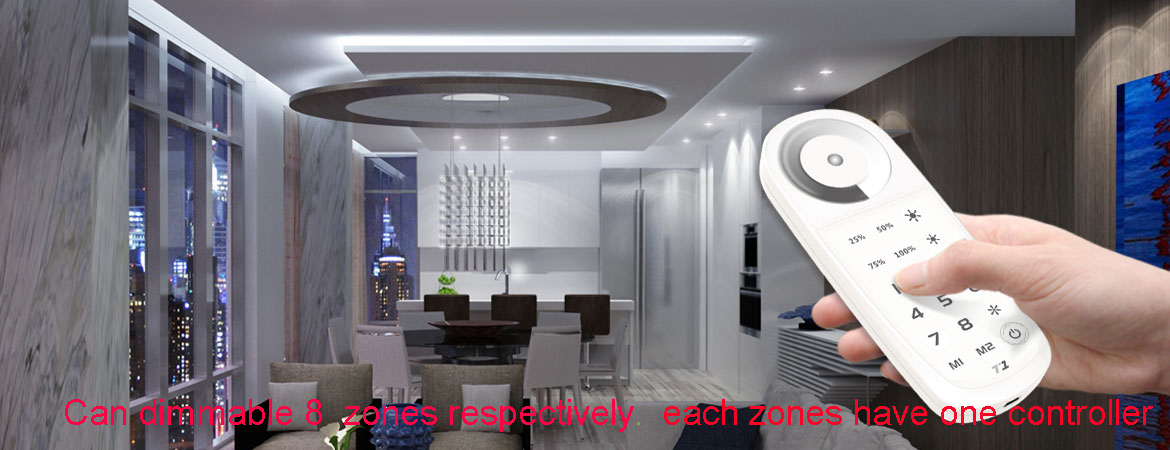

each remote controller can power 8 different zones, and each zones
with PMW driver,also each PWM can lead some lamps and sync
dimmable.
all the lamps in 8 zone can sync dimma
2.4GHZ RF wireless TOUCH PANEL Controller.
Support 4 zones control, all zones can syns dim.
each zones can dim respectively.
1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA/PC as lens, high pure reflector makes
sure more light coming out
3. Fashionable &novel looking design, ultrathin aluminum body
for easy operating.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6. Energy-saving and high efficient LED driver.
Specification sheet:
| Item NO | BLD-DL-90-3W-PWM | BLD-DL-120-6W-PWM | BLD-DL-150-9W-PWM | BLD-DL-170-12W-PWM | BLD-DL-190-15W-PWM | BLD-DL-225-18W-PWM |
| Power | 3W | 6W | 9W | 12W | 15W | 18W |
| LED qty | 15pcs | 30pcs | 45pcs | 60pcs | 75pcs | 90pcs |
| Lumen | 240LM+/- 10% | 480LM+/-10% | 720LM+/-10% | 960LM+/-10% | 1200LM+/-10% | 1440LM+/-10% |
| size | 90*20MM | 120*20MM | 150*20MM | 170*20MM | 190MM | 225MM |
| Cut-out size | 75-80MM | 105-110MM | 130-140MM | 155-160MM | 175-180MM | 205-215MM |
| Input | 100-240/277V/50-60HZ |
| color temp | 2800-3200K/4000-4500K/6000-6500K |
| Thickness | 12mm |
| Height | 24mm |
| Dimmable | Yes or None |
| Dimmable method | 0-10V/Triac |
| CRI | >80 |
| PF | >0.9 |
| Effieacy | 75-80lm/w |
| Beam angle | >120 |
| IP grade | IP40 |
| Life span | 50000 hour |
| Installation | Recessed |
| LED type | Samgsung/Epistar/Lumenmax etc |
| Material | Aluminum Die Casting,Arcylic PMMA |
| Working life time | 50000 hour |
| Warranty years | 3 years |
| MOQ | 100PCS |
Application effect:
