30 x 120cm(1 x4 ft) 40W Dali dimmable led panel light for home , hotel , office,hospital

Features of led panel light .

1. Strong 6063 aluminum as frame

2. Unique structure design make sure good heat dissipation

3. Use global famous brand material ( led chips, driver) for whole lights

Epistar 2835 professional LED chips for led light panels.

Meanwell, Tridonic reliable drivers for led panel lights.

4. Based on TUV-Austria certification professional panel lights

5. Special PCB design for led panel lights, make sure it is long – last stable working.

(Every SMD lamp is an independent unit in the series circuit. Even if any of them fails after long time work, other will keep working and same effect uniformity. )

.

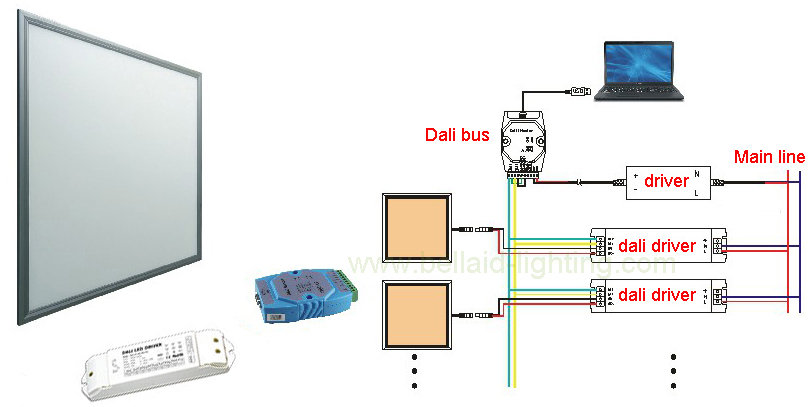

Wiring Diagram for ref :

Dali dimmer controller system:

DALI sync dimmer, one driver can power several lamp

Dali dim simple wire diagram, each Dali constant driver to power one lamp.

Features & Specifications:

Technical parameter form

Features

1. Energy Saving. Saving 65%-70% electricity cost to traditional Panels.

2. Advanced super longlife and stable driver.

3. Professional thermal management.

4. Instant on, no warm up time required.

5. No noise, no flickering.

6. No UV or IR radiation in the beam, mercury free.

7. Anti-shock, anti-moisture.

8. Aluminum alloy 6063 body and leading light transmitting Optical PMMA cover.

9. Exquisite small appearance. Easy to install with mounting brackets.

10. Eco-friendly. No mercury and harmful materials

Photometric Information


4000K 6000K



Distribution curve flux:



Illuminance demo:


User Guide Note:

Pls read the entire manual to fully understand and safe usely use this product.
The products anc be used at voltage of 100-277Vac,50/60Hz,suitable for indoor dry environment.
Specifications are subject to change without notice.pls visit www.LED-Panel-lights.com for the most recent user guide versions.


Unpacking

• Unpack and careful examine the product.
• Report any damage and save all packing material if any parts were damaged during transportation
• Do not attempt to use this apparatus if it is damaged.

Installation instructions


1) Pls remove the protection film on the front of luminaire

• Consult a qualified electrician to ensure correct branch circuit conductor.
• The products should be installed and operated by qualified electrician or technician in accordance with relevant local codes.
• Rish of electric shock,ensure that main power source is off when wiring or soldering the sections of the product.

Maintenance

• Prior to cleaning the product,make sure it has been disconnected from power supply.
• Use a dry or slightly moistened cloth for cleaning
• Never use any chemical or abrasive materials for cleaning.

Installation considerations

• The product must be at a minimum distance of 20cm from any flammable material.
• The product must not be installed into ceilings or wall that contain heat-insulating materials.

Installation steps

• Built-in

• Turn off main power before wring.
• Remove the ceiling panel
• Connect the input and ground wires(bare end) of the driver box to the main power outlet.
• Connect male-female connector tightly on the panel and driver.
• Fix the flat led panel into the ceiling.

Application:
