120w high quality module led street light With CREE led, 5 year
warranty,and alloy heat sink
Overview
This series 120W Led Module Streetlight is easy , effentive and
economy modular design led street light, it's very flexiable design, each and every module is indipendent,
even one of them is stop work, others is not any effect and still
work, also easy maintain and fast replace ,because all connected
with male-female waterproof connector.the Module work at DC 30-36V
safe voltage,so it's not any risk and safe to replace it even not
professioal electrician.
Specification |
Power: | 120w |
Material: | 6063 aluminum alloy housing + PC lens |
Type Of Chip: | power LED |
Brand Of Chip: | CREE |
Luminous: | 11000-12000 LM |
Color Temperature: | 2700 ~ 6500K |
CRI: | Ra ≥ 75 |
Beam Angle: | x140° ~ y70° |
Total Harmonic Distortion(THD): | <20% |
PF: | >0.95 |
Working Life: | ≥ 50000 hrs |
Warranty: | 3 years |
Dimensions |
Finishing Color: | Black;Gray |
Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
SHAPE: | Rectangle |
Weight: | 7.5 Kg |
Size: | 541x335x80mm |
Diameter of socket: | 50-60mm |
Package Size: | box size: 600*360*120mm 3pcs/carton; CBM:0.086m³ |
Work Environment |
Input Voltage: | AC90-305V,50-60Hz |
Operating Temperature: | -40~ + 70°C |
Application |
Application: | Used for highway, main road,Square, Industrial roads, |
Recommend mounting height: | 8m-10m |
Recommend pole Distance: | 22m-28m |
Features
(1) All aluminum whole lamp radiator, air duct design innovation
The whole lamp USES die-casting aluminum material, based on the
rigorous thermal simulation and test, air duct was optimized by
using innovative modular fins group, radiator, LED light source,
zero distance contact with the whole lamp cooling technology, the
perfect solution to LED heat dissipation problem.
(2) IP65 waterproof
Using silica gel seal technology, protection grade reaches IP65,
perfect organization, dust invasion,
torrential rain nor water penetration.
(3) Hurricane resistant level 16
Through professional wind tunnel test, the maximum wind speed of 56
m/s, namely hurricane at
level 16, also do not have any deformation, the phenomenon such as
loose, very strong.
(4) Independent power design
Drive power split type design, is not affected by the LED lamp body
temperature, improve the
efficiency of the power, stability and life, and convenient
maintenance.
(5) Good corrosion resistance
Shell by the processing of the lacquer that bake, radiator anodic
oxidation treatment, form a
protective, layer at the surface, greatly improve the corrosion
resistance, suitable for harsh outdoor environment.
(6) Long lifespan
The life time of Module LED Street Light is 50000~70000 hrs.3-5
years Warranty period from the date of purchase.

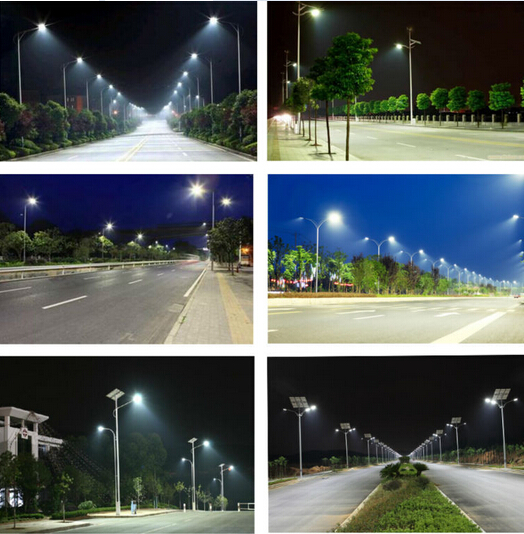

Application:
1.City road, footpath, square, school, park
2.Garden, residential area, plant, billboards,and other outdoor
lighting
After sale service
We product provide 3 years warranty, all freight for replacing
parts/lamp at our side
1. If driver failed, we’ll send new driver
2. If LED failed, we’ll sent new LED moduale
3. Unclear reason, we will sent full new set
Why choose Bellaid?
1. 8 years focused on LED.
2. One-stop lighting solutions (lighting designing, lighting
choosing, solar and wind power solution etc.)
3. OEM & ODM are optional.
4. Independent innovation, design, open mold, striking Bellaid
characteristic.
5. R&D team: 10 engineers with 9 years LED street light design
work experience.
